Reusing threads and objects via ThreadLocal
Threads in Java are expensive – they require allocation of large blocks of memory, are tracked via descriptors which have to be created and maintained by the JVM, and require numerous system calls to register the thread with the underlying operating system. Thread pool executors help solve this problem by enabling developers to create and maintain thread pools which re-use threads as the executor responds to queued work. This thread re-use enables quicker turn around on submitted jobs to the executor without resource overuse by the system. At the end of the day, however, the computational content of the job really shapes the performance characteristics of the system. Some workloads maintain references to thread safe data structures or thread safe objects.
Other times workloads depend on objects that are not thread safe and or are expensive to construct. Building on the object pool pattern we can extend threads by augmenting them with our expensive and, or non-current objects, and pass these objects to the workloads as they step up for processing. In this scenario each thread maintains its own instance of our expensive object and ThreadLocal is what enables this passing, this reference, to happen. ThreadLocal variables act as sort of global variables limited in scope to the Thread they execute in; but aren’t passed around like other variables.

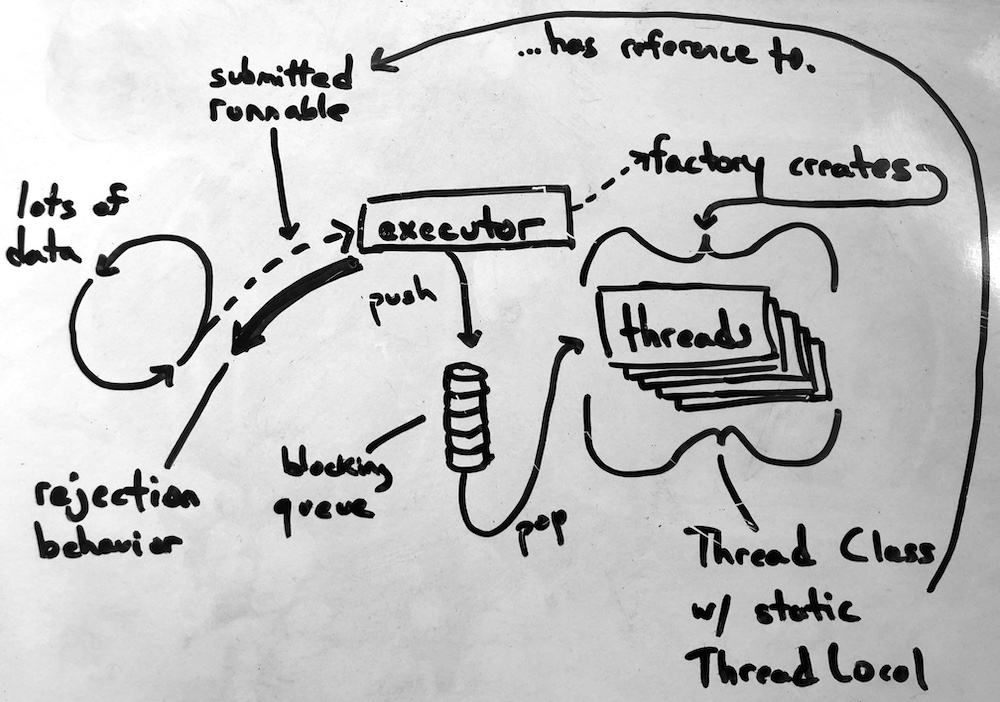

Consider the following diagram where we have many, many tasks, being submitted to an executor backed by a blocking queue and a rejection policy set to block the caller.
The executor acts as an orchestrator, taking jobs, managing submitted jobs in a queue, and managing all the threads or “workers” and their life cycles. Using extension and interface adherence we’re able to control some of this life cycle behavior. For example, thread construction can be configured to use a custom factory that creates custom Threads. The custom threads can be written with ThreadLocal variables initialized presumably in an expensive operation/computation that’s done once per thread, not per runnable. In this case the ThreadLocal variable is static and scoped to that single Thread and any runnable body of work at any given time.
The following code illustrates the aforementioned concepts:
import java.util.concurrent.CountDownLatch
import java.util.concurrent.ThreadPoolExecutor
import java.util.concurrent.TimeUnit
import java.util.concurrent.LinkedBlockingQueue
import java.util.concurrent.ThreadFactory
import java.util.Random
import java.lang.ThreadLocal
def loops = 10
class ExpensiveToConstructObject {
ExpensiveToConstructObject() {
def sleepTime = new Random().nextInt(1_000) as Long
sleep(sleepTime)
println "${Thread.currentThread().name} construction complete in ${sleepTime} ms"
}
void doThing() {
println "${Thread.currentThread().name} running doThing()"
}
}
class ReusableThread extends Thread {
static def expensiveObject = ThreadLocal.withInitial({
new ExpensiveToConstructObject() // construct the expensive object
})
ReusableThread(Runnable runnable) {
super(runnable)
}
void run() {
super.run()
}
}
class ReusableThreadFactory implements ThreadFactory {
Thread newThread(Runnable runnable) {
println "New thread requested..."
new ReusableThread(runnable)
}
}
def executor = new ThreadPoolExecutor(
1, // starting number of threads
2, // max number of threads
5, // wait time value
TimeUnit.SECONDS, // wait time unit
new LinkedBlockingQueue(5), // queue implementation and size
new ReusableThreadFactory(), // uses our thread factory ^^^
new ThreadPoolExecutor.CallerRunsPolicy()) // blocks the caller if the queue blocks
def latch = new CountDownLatch(loops)
println "submitting jobs..."
loops.times {
executor.submit {
latch.countDown()
def expensiveObject = ReusableThread.expensiveObject.get()
expensiveObject.doThing() // do thing with an expensive object
}
}
latch.await()
executor.shutdown()
First defined is the class ExpensiveToConstructObject which, you guessed it, is expensive to construct.
In this case its variable cost is based on a random value from 0 to 1,000 milliseconds (a second). Next is
the custom ReusableThread object with a static reference to a ThreadLocal variable
of type ExpensiveToConstructObject, initialized, where we incur penalty. The penalty in
this case is explicit but it could be in terms of resources (connections, etc…). Then we have our custom ReusableThreadFactory which is responsible for
generating instance of ReusableThread when instructed to by our ExecutorService. Additionally,
the ExecutorService is configured to start with 1 thread, scale to 2, keep threads around up
until 5 seconds of idle time, backed by a LinkedBlockingQueue of max size 5.
The final bit is our loop simulating load, submitting jobs to the ExecutorService. The “job”,
a Runnable, retrieves a handle on the ThreadLocal variable, obtains the wrapped object and
executes a method on that object. The latch exists to keep the script from terminating early.
Execution yields output similar to the following:
submitting job
New thread requested...
submitting job
submitting job
submitting job
submitting job
submitting job
submitting job
New thread requested...
submitting job
Thread-2 construction complete in 402 ms
Thread-2 running doThing()
Thread-2 running doThing()
Thread-2 running doThing()
Thread-2 running doThing()
Thread-2 running doThing()
Thread-2 running doThing()
main construction complete in 470 ms
main running doThing()
submitting job
submitting job
Thread-2 running doThing()
Thread-2 running doThing()
Thread-1 construction complete in 973 ms
Thread-1 running doThing()
We observe jobs submitted to the executor with the executor responding by instantiating new threads
for its pool, followed by more jobs, more pressure and more requests for thread instantiation.
At this point we also observe the behavior of the filled queue and ThreadPoolExecutor.CallerRunsPolicy() blocking
the submission of new jobs. Though there aren’t many jobs submitted to this executor, we do observe thread
re-use and confirmed thread, variable passing behavior made possible by ThreadLocal.
The following example renders the thread id, loop count, and pause time designated per thread.
@Grapes(@Grab(group='com.google.guava', module='guava', version='26.0-jre'))
import java.util.concurrent.atomic.LongAdder
import java.util.concurrent.ConcurrentHashMap
import java.util.concurrent.CountDownLatch
import java.util.concurrent.ThreadPoolExecutor
import java.util.concurrent.TimeUnit
import java.util.concurrent.LinkedBlockingQueue
import java.util.concurrent.ThreadFactory
import java.util.Random
import java.lang.ThreadLocal
import com.google.common.base.Stopwatch
class ReusableThread extends Thread {
static def sleepDuration = ThreadLocal.withInitial({new Random().nextInt(1_000)})
ReusableThread(Runnable runnable) {
super(runnable)
}
void run() {
super.run()
}
}
class ReusableThreadFactory implements ThreadFactory {
Thread newThread(Runnable runnable) {
new ReusableThread(runnable)
}
}
def executor = new ThreadPoolExecutor(
5, // starting number of threads
25, // max number of threads
5, // wait time value
TimeUnit.SECONDS, // wait time unit
new LinkedBlockingQueue(50), // queue implementation and size
new ReusableThreadFactory(), // uses our thread factory ^^^
new ThreadPoolExecutor.CallerRunsPolicy()) // blocks the caller if the queue blocks
def sleepTimeCounts = new ConcurrentHashMap()
def sleepTimeToThreadId = new ConcurrentHashMap()
def latch = new CountDownLatch(1_000) // prevent progression to output until done
def stopwatch = Stopwatch.createStarted() // overall timing
1_000.times {
executor.submit {
latch.countDown()
def sleepDuration = ReusableThread.sleepDuration.get()
sleepTimeCounts.computeIfAbsent(sleepDuration, { k -> new LongAdder() }).increment()
sleepTimeToThreadId.computeIfAbsent(sleepDuration, { k -> Thread.currentThread().getId() })
sleep(sleepDuration as Long)
}
}
latch.await()
executor.shutdown()
def sleepTimeOutput = 'thread id %-5d completed %-5d times, sleeping %-5dms %n'
sleepTimeCounts.each { sleepTime, counter ->
System.out.format(sleepTimeOutput, sleepTimeToThreadId.get(sleepTime), counter.intValue(), sleepTime)
}
println "----> ${sleepTimeCounts.values().sum()} threads finished in ${stopwatch.elapsed(TimeUnit.MILLISECONDS)} ms"
Results:
thread id 29 completed 35 times, sleeping 193 ms
thread id 28 completed 88 times, sleeping 75 ms
thread id 30 completed 17 times, sleeping 396 ms
thread id 36 completed 33 times, sleeping 205 ms
thread id 21 completed 11 times, sleeping 655 ms
thread id 34 completed 82 times, sleeping 80 ms
thread id 32 completed 46 times, sleeping 146 ms
thread id 33 completed 9 times, sleeping 791 ms
thread id 31 completed 88 times, sleeping 154 ms
thread id 19 completed 20 times, sleeping 346 ms
thread id 17 completed 20 times, sleeping 347 ms
thread id 26 completed 220 times, sleeping 28 ms
thread id 18 completed 7 times, sleeping 991 ms
thread id 24 completed 24 times, sleeping 287 ms
thread id 35 completed 31 times, sleeping 223 ms
thread id 1 completed 29 times, sleeping 225 ms
thread id 25 completed 16 times, sleeping 422 ms
thread id 15 completed 65 times, sleeping 102 ms
thread id 13 completed 9 times, sleeping 814 ms
thread id 23 completed 9 times, sleeping 752 ms
thread id 22 completed 23 times, sleeping 304 ms
thread id 14 completed 9 times, sleeping 755 ms
thread id 16 completed 19 times, sleeping 373 ms
thread id 20 completed 36 times, sleeping 186 ms
thread id 37 completed 54 times, sleeping 124 ms
----> 1000 threads finished in 6858 ms
